Choosing AVCO is an investment in certainty. We have redefined the procurement process by blending elite American engineering with an agile, customer-centric approach.

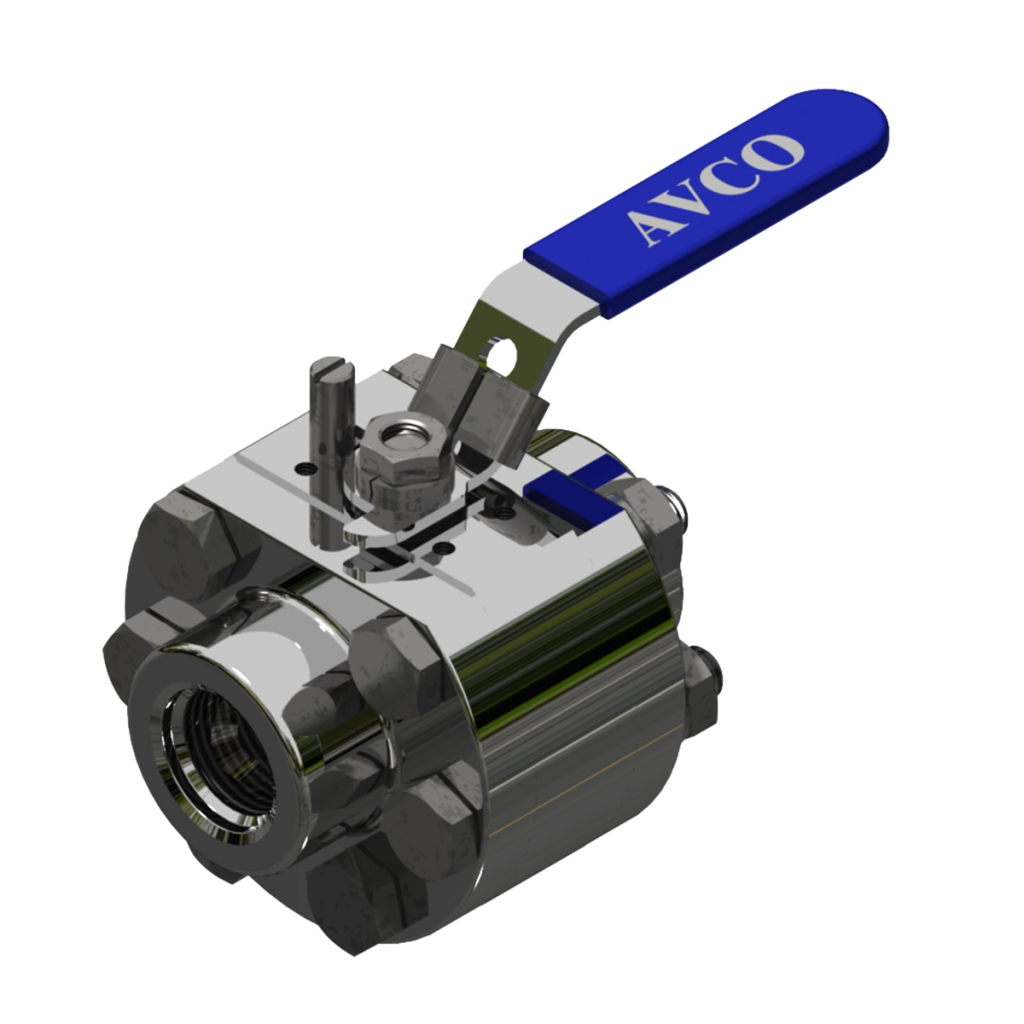

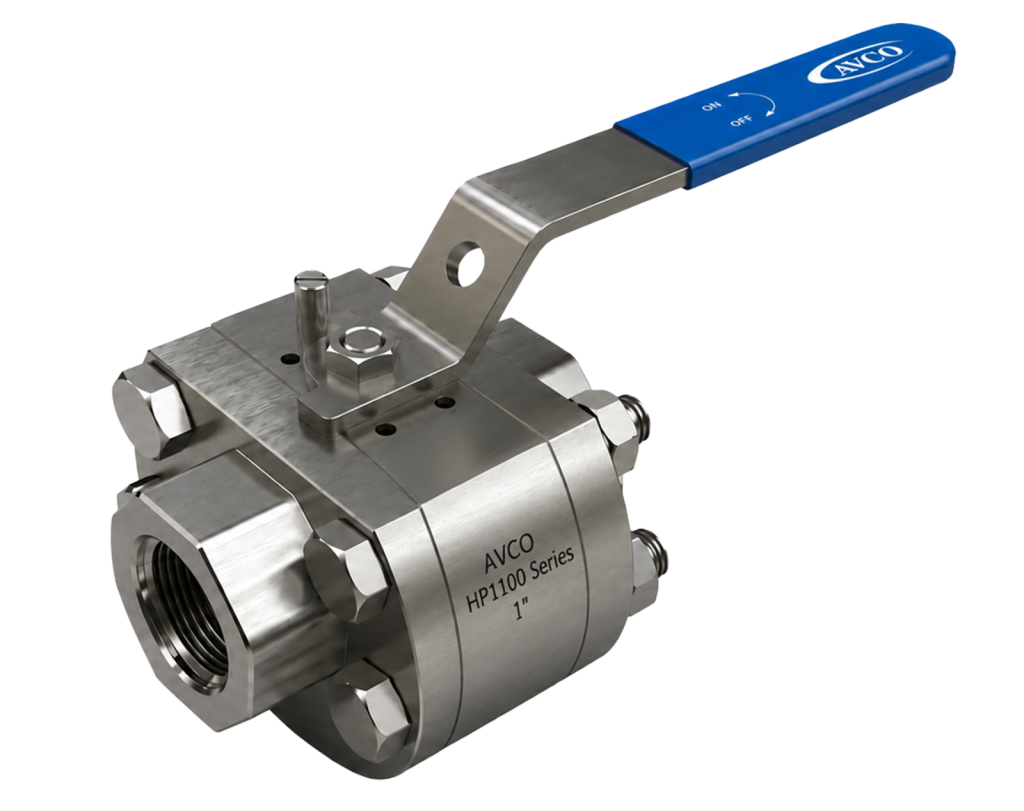

The AVCO HP1100 series ball valve is designed for high pressure applications in the smaller pipe size markets where high performance and quality are essential. The precision machined, three (3) piece design was created by AVCO engineers to provide greater flexibility for butt weld, socket weld, NPT and SAE AS5202 ends up to 6000 psi. It is available in sizes from ½” to 2” and can be produced from 316 stainless steel and carbon steel. The valves are designed and tested to ASME B16.34. The floating standard port ball sits between precision engineered Delrin® or PEEK seats to cater for harsh environment and high-pressure applications. The stem is live loaded with blow out prevention and has online adjustment capability. The integral mount pad allows for easy mounting of a gear operator, pneumatic actuator or electric actuator. This valve will deliver high performance use in the oil, gas, chemical and power industries.
The AVCO HP1100 series ball valve is designed for high pressure applications in the smaller pipe size markets where high performance and quality are essential. The precision machined, three (3) piece design was created by AVCO engineers to provide greater flexibility for butt weld, socket weld, NPT and SAE AS5202 ends up to 6000 psi. It is available in sizes from ½” to 2” and can be produced from 316 stainless steel and carbon steel. The valves are designed and tested to ASME B16.34.
The AVCO HP1100 series ball valve is designed for high pressure applications in the smaller pipe size markets where high performance and quality are essential. The precision machined, three (3) piece design was created by AVCO engineers to provide greater flexibility for butt weld, socket weld, NPT and SAE AS5202 ends up to 6000 psi. It is available in sizes from ½” to 2” and can be produced from 316 stainless steel and carbon steel. The valves are designed and tested to ASME B16.34. The floating standard port ball sits between precision engineered Delrin® or PEEK seats to cater for harsh environment and high-pressure applications. The stem is live loaded with blow out prevention and has online adjustment capability. The integral mount pad allows for easy mounting of a gear operator, pneumatic actuator or electric actuator. This valve will deliver high performance use in the oil, gas, chemical and power industries.
The AVCO HP1100 series ball valve is designed for high pressure applications in the smaller pipe size markets where high performance and quality are essential. The precision machined, three (3) piece design was created by AVCO engineers to provide greater flexibility for butt weld, socket weld, NPT and SAE AS5202 ends up to 6000 psi. It is available in sizes from ½” to 2” and can be produced from 316 stainless steel and carbon steel. The valves are designed and tested to ASME B16.34.
